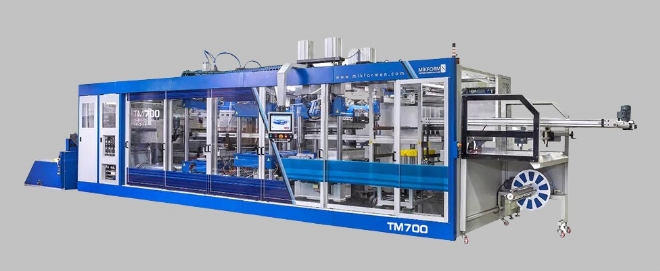

TM700 Thermoforming Machine

“ TM700 Thermoforming Machine ”







TM700 Thermoforming Machine

Machine Code: TM700
Dimensions: 11.50 m (L) × 2.85 m (H) – Weight: 11,500 kg (3 stations) / 13,000 kg (4 stations)
Sheet Width: max 750 mm (+40 mm stretch)
Sheet Thickness: 0.2 – 1.5 mm
Product Height: Positive 130 mm / Negative 130 mm
Working Stroke: Positive 140 mm / Negative 140 mm
Materials: PET, CPET, PP, PVC, PS, OPS, PLA
Cycle Speed: up to 75 cycles/min (dry-run)
Mold Size: 740 × 585 mm
Clamping Force: Forming 55,000 daN | Punching 65,000 daN | Cutting 70,000 daN
Heater Power: 84 kW
Installed Power: 120 kW (3 stations) / 130 kW (4 stations)
Air Requirement (7 bar): 6 – 8 m³/min
Cooling Capacity: 25,000 Kcal/h
Vacuum Pump: 200 m³/h
