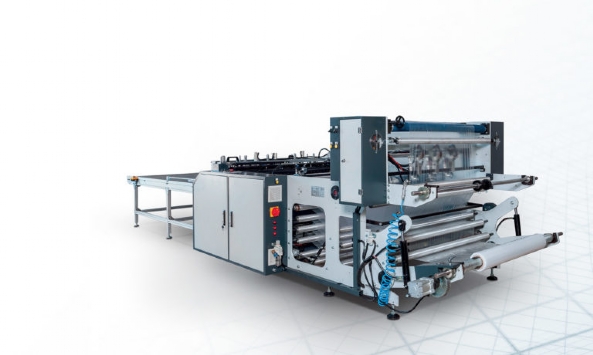

Plastic Bag Machine 1000-1300
Plastic Bag Machine 1000-1300
TECHNICAL SPECIFICATIONS
- Control System: Siemens S71200 PLC and 7-inch Color Touch Screen
- Film Control: 16 Nm Mitsubishi Servo Motor
- Cut Length Range: 150mm - 3000mm
- Cutting Thickness Range: 0.007 - 0.150 * 2 micron (Cold Cut)
- Printed Cutting Feature: Photocell
- Automatically Controlled Moving Conveyor: Options available in 2m / 3m / 4m
- Needleless Stacking Control: 7 Nm Mitsubishi Servo
- Edge Control: Ultrasonic Sensor
- Pneumatic Coil Brake System
- Pneumatic or Hydraulic Coil Lifting System
- Pneumatic and Inverter Ballerina Control
- SMC Pneumatic Valve and Pistons
- Flow-Controlled Hot Slicing Unit
- Welding Control: 0.3 * 3 Ropex Wire
- Pneumatic Hole Apparatus: 2 pieces
- Coil Shafts: 1 Air Coil Shaft, 1 Mechanical Coil Shaft
