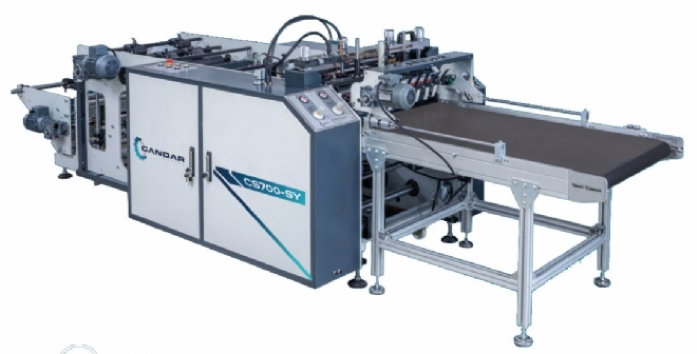

    Bag Cutting Machine 700-1000

    “ Bag Cutting Machine ”



    Bag Cutting Machine 700-1000

    TECHNICAL SPECIFICATIONS

    • Control System: Siemens S71200 PLC and 7-inch Color Touch Screen
    • Film Control: 16 Nm Mitsubishi Servo Motor
    • Maximum Cutting Length Range: 140mm - 1100mm
    • Cutting Thickness Range: 0.020 - 0.100 * 2 micron
    • Printed Cutting Feature: Photocell
    • Automatically Controlled Moving Conveyor: Options available in 2m / 3m / 4m
    • Needleless Stacking Control: 7 Nm Mitsubishi Servo
    • Edge Control: Ultrasonic Sensor
    • Pneumatic Coil Brake System
    • Pneumatic or Hydraulic Coil Lifting System
    • Pneumatic and Inverter Ballerina Control
    • SMC Pneumatic Valve and Pistons
    • Double Pneumatic Handpiece
    • Adhesive Tape Attachment
    • Pneumatic Hole Tools: 2 tools
    • Air Coil Shaft and Mechanical Coil Shaft: 1 each
