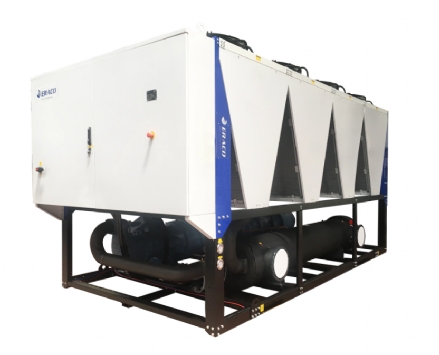

EAW.VI+1 Serie Air Cooled Chiller

EAW.VI+1 Series Air Cooled Chillers | Inverter Screw Industrial Cooling Solutions

EAW.VI+1 Series Air Cooled Chiller Units are designed to meet the demanding water cooling requirements of commercial and industrial facilities. Equipped with inverter-driven screw compressors, these air cooled chiller systems provide precise capacity control, high energy efficiency, and stable operation across a wide range of load conditions.

High-efficiency heat transfer is achieved through the combination of axial fans, shell & tube evaporators, and V-type microchannel condenser design, ensuring reliable performance even in harsh ambient environments. System operation, safety, and monitoring are managed via a PLC-based control system, making the EAW.VI+1 Series suitable for modern industrial processes and automated facilities.

Technical Features – EAW.VI+1 Industrial Chillers

• 1 to 3 inverter-driven screw compressors

• 1 to 3 independent cooling circuits for flexible capacity control

• Compatible with R134A and R513A refrigerants

• V-type microchannel condenser for efficient heat rejection

• Shell & Tube evaporator for long service life and reliable heat exchange

• Electronic expansion valve for precise refrigerant flow control

• Axial AC fans as standard; EC fans available as an option

• Designed for extreme conditions with ambient temperature range from -40°C to +53°C

• Water outlet temperature range from +4°C to +20°C, suitable for a wide variety of industrial cooling applications

The EAW.VI+1 Series Air Cooled Industrial Chillers combine inverter technology, high cooling capacity, and robust mechanical design, making them an ideal solution for facilities requiring energy-efficient, reliable, and flexible industrial cooling systems.
