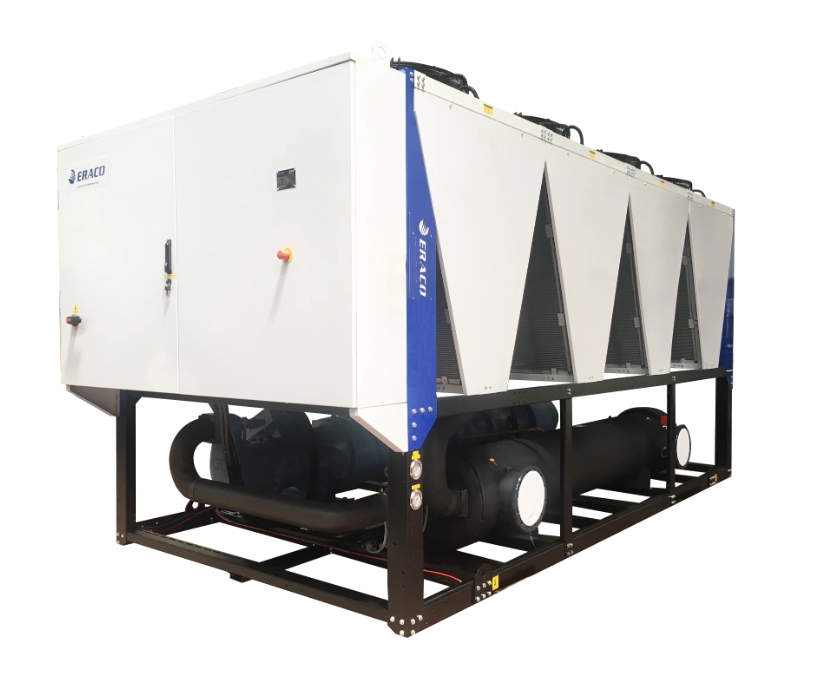

    EAW.VI+1 Serie Air Cooled Chiller

    “ 350-1520 kW ”



    EAW.VI+1 Series Air Cooled Chillers | Inverter Screw Industrial Cooling Solutions

    EAW.VI+1 Series Air Cooled Chiller Units are designed to meet the demanding water cooling requirements of commercial and industrial facilities. Equipped with inverter-driven screw compressors, these air cooled chiller systems provide precise capacity control, high energy efficiency, and stable operation across a wide range of load conditions.

    High-efficiency heat transfer is achieved through the combination of axial fans, shell & tube evaporators, and V-type microchannel condenser design, ensuring reliable performance even in harsh ambient environments. System operation, safety, and monitoring are managed via a PLC-based control system, making the EAW.VI+1 Series suitable for modern industrial processes and automated facilities.

    Technical Features – EAW.VI+1 Industrial Chillers

    • 1 to 3 inverter-driven screw compressors

    • 1 to 3 independent cooling circuits for flexible capacity control

    • Compatible with R134A and R513A refrigerants

    • V-type microchannel condenser for efficient heat rejection

    • Shell & Tube evaporator for long service life and reliable heat exchange

    • Electronic expansion valve for precise refrigerant flow control

    • Axial AC fans as standard; EC fans available as an option

    • Designed for extreme conditions with ambient temperature range from -40°C to +53°C

    • Water outlet temperature range from +4°C to +20°C, suitable for a wide variety of industrial cooling applications

    The EAW.VI+1 Series Air Cooled Industrial Chillers combine inverter technology, high cooling capacity, and robust mechanical design, making them an ideal solution for facilities requiring energy-efficient, reliable, and flexible industrial cooling systems.
