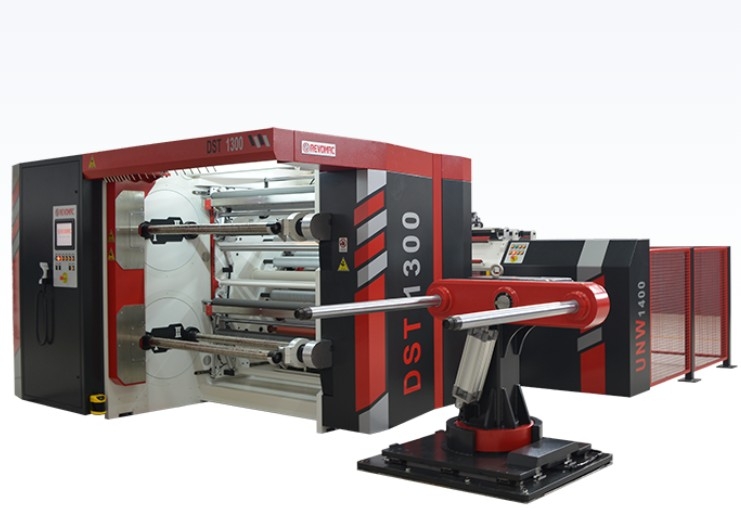

DST 1300 Slitting Machine

“ DST 1300 Slitting Machine ”



DST 1300 Slitting Machine

The DST 1300 Slitting Machine is equipped with a turret rewinder unit that enables high-speed rewinding with maximum quality, even in high tonnage operations. Designed for the flexible packaging industry, it delivers high production capacity while ensuring an excellent balance between investment cost and performance. Advanced equipment and accessories guarantee consistent, high-quality production.

Technical Specifications:

• Unwinding Reel Diameter: 1400 mm
• Rewinder Reel Diameter: 600 mm
• Working Width: 1000 mm / 1300 mm / 1600 mm
• Unwinding Core Diameter: 76 mm (3”) / 152 mm (6”)
• Rewinder Core Diameter: 76 mm (3”) / 152 mm (6”) (Optional)
• Minimum Slitting Width: 50 mm (25 mm Optional)
• Machine Speed: Up to 800 m/min

Slitting Systems:

• Circular Knife Slitting System
• Razor Blade Slitting System

Workable Materials:

• Films: 12 – 180 micron (CPP, OPP, BOPP, BOPA, LLDPE, LDPE, HDPE, PET, PETP, PVC)
• Laminates: Various materials up to 180 microns
• Paper & Board: 20 – 250 gr/m²
• Aluminum: Foil up to 180 microns
