End Caps (Special R&D and Production)

“ End Caps (Special R&D and Production ”





End Caps (Special R&D and Production)

🔹 Product Overview

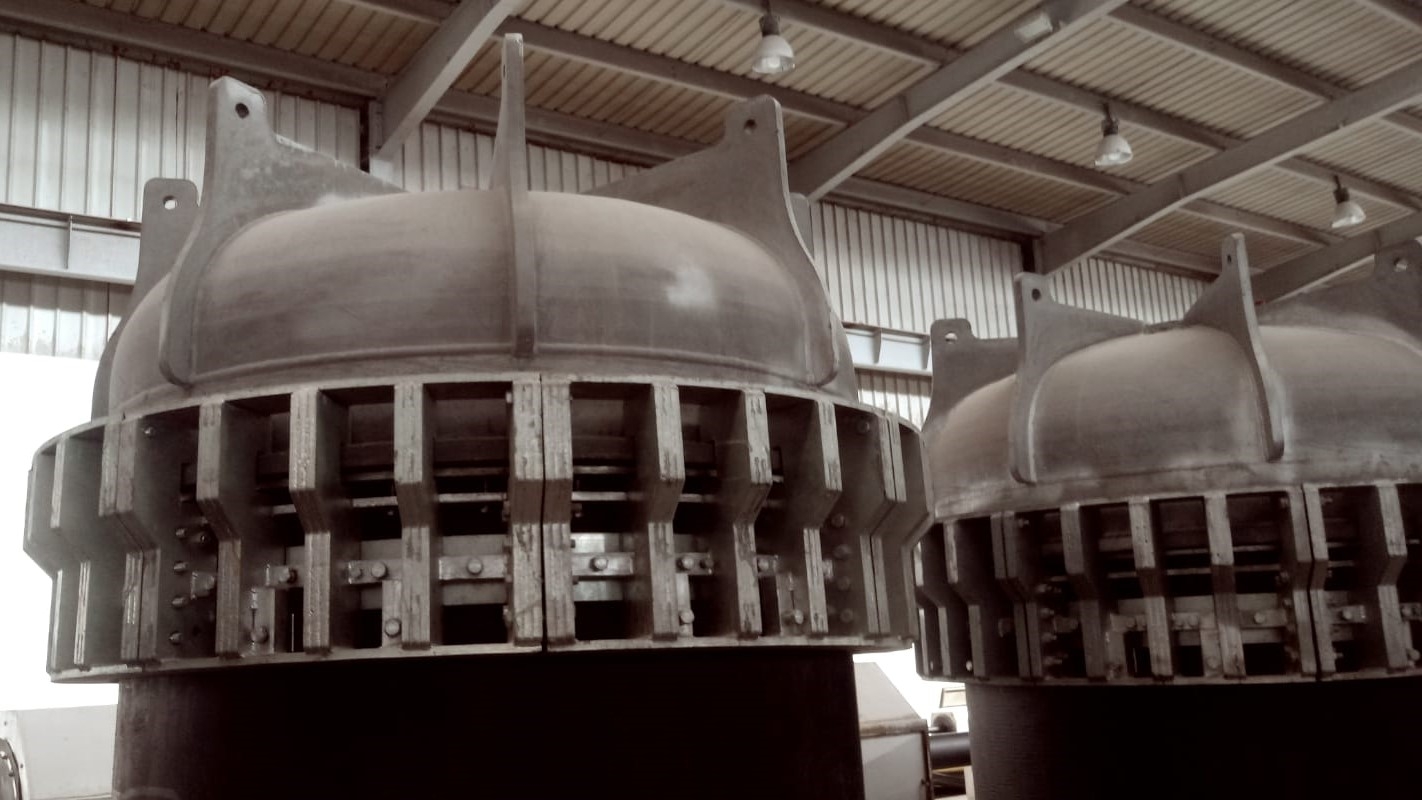

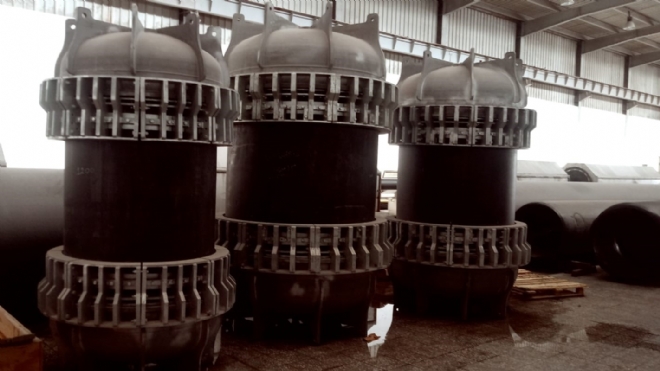

PME Turkey’s custom-engineered End Caps are precision-built components designed for hydrostatic pressure testing of plastic and composite pipes. These caps — including our 1600 mm diameter models manufactured for El Nour Company (Egypt) — combine strength, adaptability, and long-term reliability, meeting the highest international testing standards.

They are constructed using stainless steel (304 / 316L) or galvanized steel, ensuring durability under high-pressure testing conditions. The adjustable gasket design provides perfect sealing for various pipe diameters, making them suitable for PE, PP, PERT, and PEX pipes from 800 mm to 2600 mm.

🔹 Standards Compliance

• TS EN ISO 1167

• ASTM D 1598

• ASTM D 1599

🔹 Key Technical Features

• High-Pressure Resistance: Withstands extreme hydrostatic test pressures safely.

• Premium Materials: Built with steel and stainless steel for longevity.

• Adjustable Gasket: Enables flexible sealing across different diameters.

• No Hammering or Pressing: Eliminates the need for manual force during installation.

• Easy Mounting: Hydraulic-friendly and quick to set up.

• Special Gasket Design: 3- or 4-lip structure for superior sealing efficiency.

• Test Suitability: Ideal for long-term life-span and endurance tests.

• Deformation Tolerance: Accommodates pipe shape changes during testing.

• Screw Pressure Design: Replaces traditional hammer sealing with smooth tightening.

• Adaptive Seal Production: Silicone/rubber seals compatible with 304–316L stainless standards.

• Pipe Range: 800–2600 mm diameter compatibility.

🔹 Detailed Description

The PME Turkey End Cap system represents a new generation of pipe sealing technology developed through in-house R&D. Unlike conventional pressure caps that require hammering or external pressing, this design incorporates a screw-driven clamping system, ensuring a uniform, reliable seal every time.

Each unit features a special multi-lip gasket that adjusts automatically to pipe irregularities, maintaining full airtight sealing even under fluctuating pressure. Thanks to its hydraulic compatibility and easy-mount configuration, operators can assemble and dismantle the caps quickly and safely.

All sealing components are made using high-resistance silicone and rubber compounds, suitable for extreme conditions. These end caps are specifically optimized for hydrostatic endurance testing, conforming to TS EN ISO 1167 and ASTM D1598–D1599 standards — making them a trusted solution in laboratories and production testing facilities worldwide.

🔹 Benefits

✅ Precision: Perfect sealing and repeatable results under varying pressures.
✅ Durability: Stainless steel body and long-life gaskets.
✅ Efficiency: No need for pressing tools or hammering, saving time and labor.
✅ Versatility: Adjustable gasket fits multiple pipe diameters.
✅ Reliability: Designed for long-term testing and minimal maintenance.
